The Principle

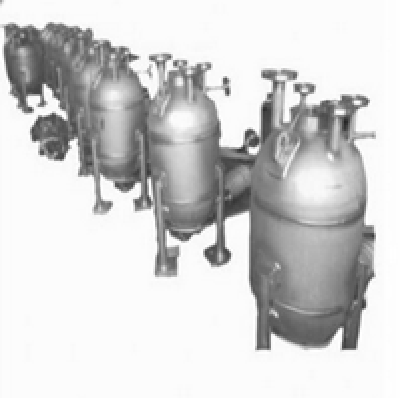

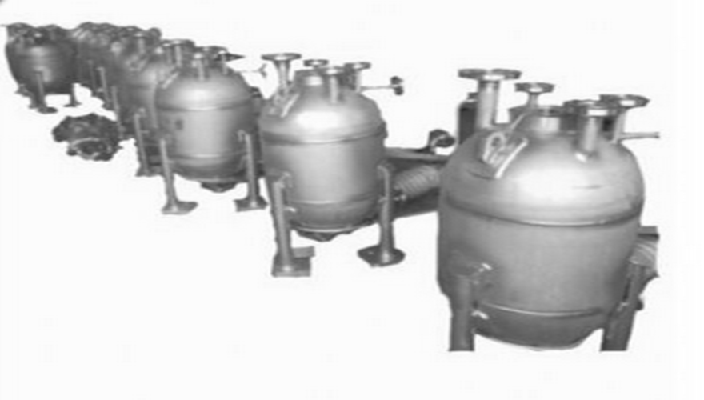

    The product water from the automatic cutting device shell, float, lever and buoyancy amplification mechanism, no secondary seal back pressure valve and other major components. It uses water and the density difference between liquid hydrocarbons and liquid in the container, the principle of a uniform pressure, through the floating is immersed in water and liquid hydrocarbons in the buoyancy to achieve a difference between up and down movement, with the buoyancy force amplification mechanism zoom bad, as a driving force to a non-pressure control valve to open and close, and cutting-off the water in the heater tank with the liquid hydrocarbon separated automatically and quickly returned to the tank ball, cutting-off the water to achieve automatic control.

Technical feature

1, the design pressure: 2.2MPa ~ 6.4MPa
2, operating temperature: 1 ℃ -50 ℃
3, the working medium: liquid petroleum gas and water class
4, liquefied petroleum gas like liquid medium density: ≤ 790kg / m³
5, cut water consumption: 2 ~ 5m ³ / h
6, cut the amount of water containing hydrocarbons: ≤ 20PPM
7, the instrument-controlled alarm system voltage: DC24V
