Introduction

GXP Floating Suction Line is applicable to various horizontal and vertical storage tanks.

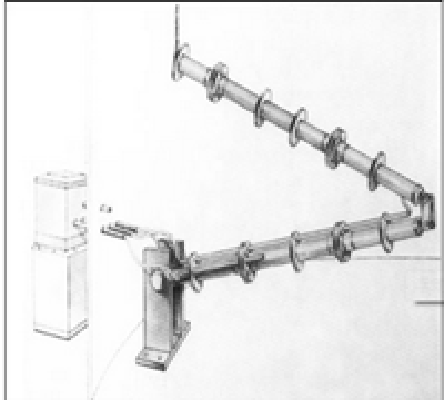

One end of the device connects to the short outlet pipe under oil tank, and the other end hangs below liquid level dipping and heaving in accordance with liquid level.and the other end hangs below liquid level dipping and heaving in accordance with liquid level.Only oil on top level will be drawn. Due to sedimentation, water and impurities will always under the lowest oil level.Thus it ensures floating suction line to draw oil on the top all the time, and the cleanness of oil be ensured, life of purifying equipment in the lower course be prolonged.

Performance Characteristics

Medium Applicable:  aviation fuel,  asoline, diesel

Nominal diameter: N50mm～DN400mm

Lift angle: （MAX）65°

Disassembly and assembly requirements：structural

components shall be free to get in and out of the inlet (≥600mm) of oil tank.

Anti-vortex measures avalible. Bidirectional in and out:

be capable of letting oil in and letting ioi out.

Order Parameters

Type of petroleum tank (vertical or horizontal)

Caliber of outlet pipe (external diameter * wall thickness)

Nominal pressure and criterion of outlet flange

Inner diameter of oil tank (mm)

Loading height of oil tank(m)

Bottom slope of oil tank (%)

Distance between the center of outlet and the bottom of tank (mm)
